Tata Ace HT Price in India Specifications Features Images

TATA ACE HT Mini Truck


Hey, Guys Hi!! Welcome to Commercialvehicleinfo.com. I am your commercial vehicle guide here as usual. Here in this article, I am going to introduce the TATA ACE HT Mini Truck information in details such as price list in India, specifications, Features, Mileage, Images and review. That all kinds of information are reliable and genuine, I hope it is helpful to you, because I always think about our site visitor. Ok so let’s go for that friends.

The TATA ACE HT is the India’s first High-Torque compact 4-wheel mini truck, that is specially designed for steep terrain. The Ace HT is engineered with deep gear ratios, rendering it the high torque required to climb steep slopes with remarkable ease. It is along with its powerful twin-cylinder water-cooled diesel engine with an output of 16bhp @3200 r/m is sure to take you and business to greater heights.



TATA ACE HT  BS III & BS IV Mini Truck

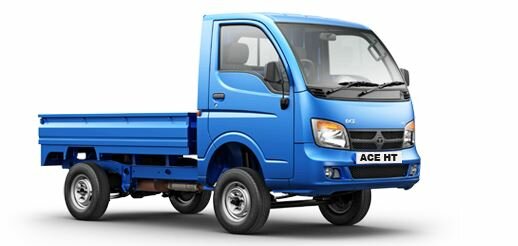

TATA ACE HT 1

TATA ACE HT BS III & BS IV Mini Truck Price In India

 The TATA ACE HT BS III & BS IV Mini Truck Ex-Showroom price is Rs. 4,01,106

TATA ACE HT BS III & BS IV Mini Truck Specifications

ENGINE
Model TATA 275 IDI Diesel BS-III and BS IV
Type  2 cylinder, 702 cc water cooled engine
Max. Power 16 hp @ 3200 rpm
Max. torque  3.8 mkg @ 2000 RPM
Displacement  702 cm3
Special items Catalytic converter (only in BS III & BS IV)
TRANSMISSION
Clutch  Single plate dry friction diaphragm type
Gear box  GBS 65-4/6.31
Type  4 speed manual transmission. Synchromesh on all forward gears. Sliding mesh for reverse gear.
Steering  Mechanical, variable ratio (23.1 to 28.9), 380 mm dia
BRAKES
Type  Dual circuit hydraulically activated
Front  Disc Brake
Rear  Drum brakes (200 mm dia x 30 mm)
Parking Brake  Cable operated mechanical linkages acting on rear wheels
SUSPENSION
Front  Rigid axle with parabolic leaf spring
Rear  Live axle with parabolic leaf spring
Shock Absorber  Hydraulic double acting telescopic type
WHEELS & TYRES
Tyres  145 R12 LT 8PR Radial
DIMENSIONS (MM)
Length 3800
Width 1500
Height 1845
Wheelbase 2100
Track Front 1300
Track Rear 1320
Cargo box dimensions 2140 x 1430 x 300
Min turning circle dia 8.6m
FUEL TANK
Capacity  30 L
PERFORMANCE
Max Speed  60 km/h
Max Gradability  22%
Grade Restartability  21%
WEIGHTS
GVW (Kg)  1550 kg
Kerb Weight  840 kg
Seating capacity  Driver + 1




TATA ACE EX BS III & BS IV Mini Truck

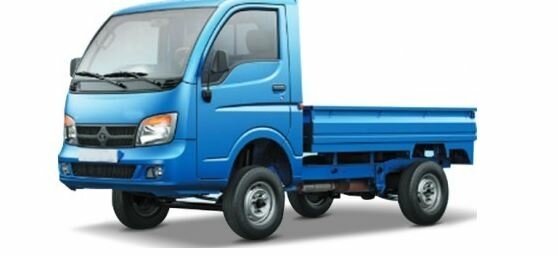

TATA ACE HT 4

TATA ACE EX BS III & BS IV Mini Truck Price In India

 The TATA ACE EX BS III & BS IV Mini Truck Ex-Showroom price is Rs. 4,02,105

TATA ACE EX BS III & BS IV Mini Truck Specifications

ENGINE
Model TATA 275 IDI Diesel BS-III and BS IV
Type  2 cylinder, 702 cc water cooled engine
Max. Power 16 hp @ 3200 rpm
Max. torque  3.8 mkg @ 2000 RPM
Displacement  702 cm3
Special items Catalytic converter (only in BS III & BS IV)
TRANSMISSION
Clutch  Single plate dry friction diaphragm type
Gear box  GBS 65-5/5.27
Type  5 speed manual transmission. Synchromesh on all forward gears. Sliding mesh for reverse gear.
Steering  Mechanical, variable ratio (23.1 to 28.9), 380 mm dia
BRAKES
Type  Dual circuit hydraulically activated
Front  Disc Brake
Rear  Drum brakes (200 mm dia x 30 mm)
Parking Brake  Cable operated mechanical linkages acting on rear wheels
SUSPENSION
Front  Rigid axle with parabolic leaf spring
Rear  Live axle with parabolic leaf spring
Shock Absorber  Hydraulic double acting telescopic type
WHEELS & TYRES
Tyres  155 R13 LT 8PR
DIMENSIONS (MM)
Length 3800
Width 1500
Height 1845
Wheelbase 2100
Track Front 1300
Track Rear 1320
Cargo box dimensions 2140 x 1430 x 300
Min turning circle dia 8.6m
FUEL TANK
Capacity  30 L
PERFORMANCE
Max Speed  70 km/h
Max Gradability  22%
Grade Restartability  21%
WEIGHTS
GVW (Kg)  1550 kg
Kerb Weight  840 kg
Seating capacity  Driver + 1




TATA ACE HT Mini Truck Key Features

TATA ACE HT SLEEK DESIGN


  • 4 stroke, indirect injection diesel engine
  • TATA 275 IDI Diesel BS-III and BS IV model
  • 702cc engine displacement
  • 16 hp @ 3200 rpm power  output
  • 3.8mkg @2000rpm torque
  • Single Plate Dry Friction Diaphragm clutch
  • 60 kmph top attainable speed
  • 22% Gradeability & 21% Grade Restartability

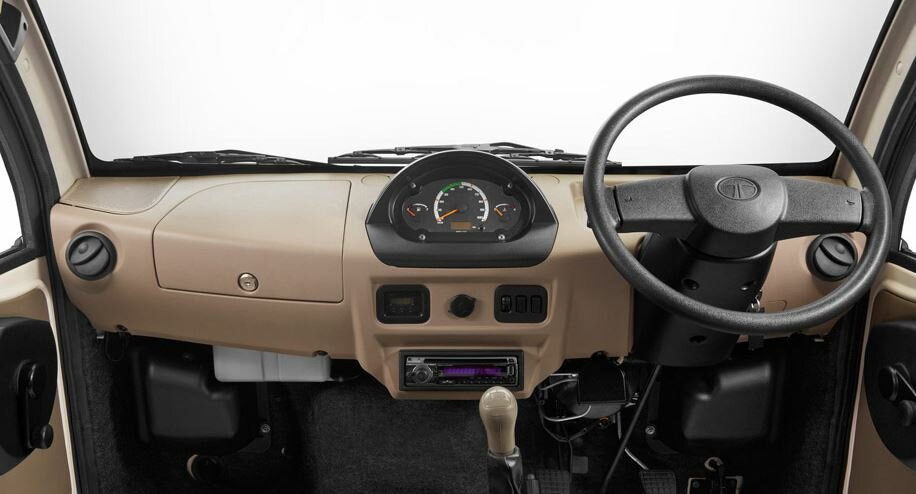

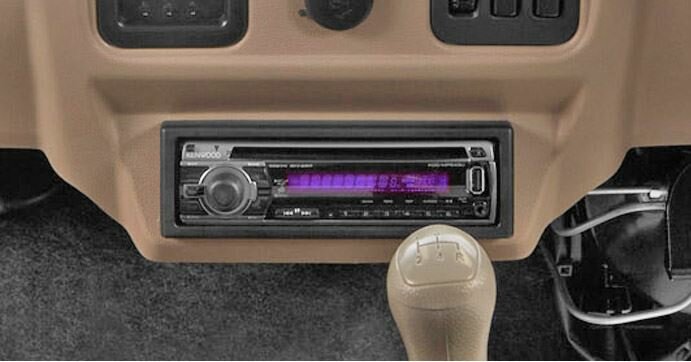

TATA ACE HT Interrior 1 TATA ACE HT Interrior TATA ACE HT Music System

  • 2100mm wheelbase & 30 litres fuel tank
  • Dual Circuit Hydraulically Activated brakes
  • Rigid Axle with Parabolic Leaf Spring suspension
  • Front disc and rear drum brakes
  • Mechanical, Variable Ratio (20.5 to 24.5) steering

TATA ACE HT SLEEK DESIGN

  • Special features such as Sleek design wide angle ORVM, Excellent headlamp, Ergonomic steering wheel, Music system provision, Bottle holder, Mobile charger and High-class dashboard.
  • Seating capacity: Driver + 1
  • A warranty of 36,000 km or 12 months

Final Words

I think it should be enough information to you for buy or sell this TATA ACE DICOR NA Mini Truck. I hope you like this article, but if you have any query regarding this article, then please comment in the comment section friends. we will solve your problem as soon friends. Thanks for visiting our site friends and stay with me for new stuff like this friends. Keep Smile and Take Care friends.
