Hey, Guys Hi!! Welcome to Commercialvehicleinfo.com. I am your commercial vehicle guide here as usual. Here in this article, I am going to introduce the TATA ACE HT Mini Truck information in detail such as the price list in India, Specifications, Features, Mileage, Images, and review.

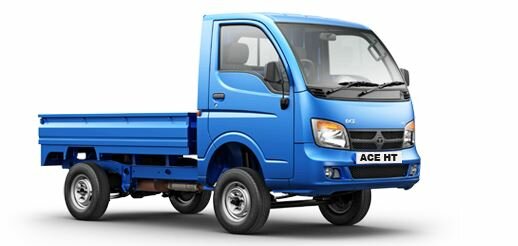

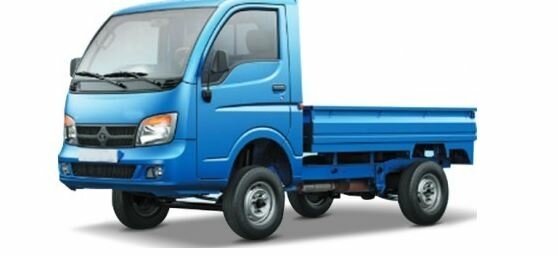

The TATA ACE HT is India’s first High-Torque compact 4-wheel mini truck, that is specially designed for steep terrain. The Ace HT is engineered with deep gear ratios, rendering it the high torque required to climb steep slopes with remarkable ease.
Also, check
- New jcb price in punjab
- New zetor tractor price list ireland
- Kubota 525 tractor
- Bobcat mt100
- Bajaj 3 wheeler price
TATA ACE HT BS III & BS IV Mini Truck
Tata Ace HT Price in India
Tata Ace HT Original Price: Rs. 6.49 Lakh – 7.05 Lakh.
Tata ace ht price on road 2022: Rs. 3.99 – Rs. 6.35
Tata Ace Ht Key Facts
- Weight: 840 kg
- Tata ace ht mileage: 16 – 18 kmpl
- Max. Power: 16 hp @ 3200 rpm
- Engine oil capacity: 15W-40 (500 ml)
- Loading capacity: 710 kg
- Engine cc: 702 cc
- Tyre size: 145 R12 LT 8PR Radial
- Wheelbase: 2100 mm
- Max Speed: 60 km/h
- Width: 1500
TATA ACE HT BS III & BS-IV Mini Truck Specifications
|
ENGINE |
||
| Model | TATA 275 IDI Diesel BS-III and BS IV | |
| Type | 2-cylinder, 702 cc water-cooled engine | |
| Max. Power | 16 hp @ 3200 rpm | |
| Max. torque | 3.8 kg @ 2000 RPM | |
| Displacement | 702 cm3 | |
| Special items | Catalytic converter (only in BS III & BS IV) | |
|
TRANSMISSION |
||
| Clutch | Single plate dry friction diaphragm type | |
| Gearbox | GBS 65-4/6.31 | |
| Type | 4-speed manual transmission. Synchromesh on all forward gears. Sliding mesh for reverse gear. | |
| Steering | Mechanical, variable-ratio (23.1 to 28.9), 380 mm dia | |
|
BRAKES |
||
| Type | Dual circuit hydraulically activated | |
| Front | Disc Brake | |
| Rear | Drum brakes (200 mm dia x 30 mm) | |
| Parking Brake | Cable-operated mechanical linkages acting on rear wheels | |
|
SUSPENSION |
||
| Front | Rigid axle with parabolic leaf spring | |
| Rear | Live axle with parabolic leaf spring | |
| Shock Absorber | Hydraulic double acting telescopic type | |
|
WHEELS & TYRES |
||
| Tires | 145 R12 LT 8PR Radial | |
|
DIMENSIONS (MM) |
||
| Length | 3800 | |
| Width | 1500 | |
| Height | 1845 | |
| Wheelbase | 2100 | |
| Track Front | 1300 | |
| Track Rear | 1320 | |
| Cargo box dimensions | 2140 x 1430 x 300 | |
| Min turning circle dia | 8.6m | |
|
FUEL TANK |
||
| Capacity | 30 L | |
|
PERFORMANCE |
||
| Max Speed | 60 km/h | |
| Max Gradability | 22% | |
| Grade Restartability | 21% | |
|
WEIGHTS |
||
| GVW (Kg) | 1550 kg | |
| Kerb Weight | 840 kg | |
| Seating capacity | Driver + 1 | |
TATA ACE EX BS III & BS IV Mini Truck
TATA ACE EX BS III & BS-IV Mini Truck Price In India
Tata ace ht on road price Ex-Showroom price is Rs. 4,02,105
TATA ACE EX BS III & BS-IV Mini Truck Specifications
|
ENGINE |
||
| Model | TATA 275 IDI Diesel BS-III and BS IV | |
| Type | 2-cylinder, 702 cc water-cooled engine | |
| Max. Power | 16 hp @ 3200 rpm | |
| Max. torque | 3.8 kg @ 2000 RPM | |
| Displacement | 702 cm3 | |
| Special items | Catalytic converter (only in BS III & BS IV) | |
|
TRANSMISSION |
||
| Clutch | Single plate dry friction diaphragm type | |
| Gearbox | GBS 65-5/5.27 | |
| Type | 5-speed manual transmission. Synchromesh on all forward gears. Sliding mesh for reverse gear. | |
| Steering | Mechanical, variable-ratio (23.1 to 28.9), 380 mm dia | |
|
BRAKES |
||
| Type | Dual circuit hydraulically activated | |
| Front | Disc Brake | |
| Rear | Drum brakes (200 mm dia x 30 mm) | |
| Parking Brake | Cable-operated mechanical linkages acting on rear wheels | |
|
SUSPENSION |
||
| Front | Rigid axle with parabolic leaf spring | |
| Rear | Live axle with parabolic leaf spring | |
| Shock Absorber | Hydraulic double-acting telescopic type | |
|
WHEELS & TYRES |
||
| Tyres | 155 R13 LT 8PR | |
|
DIMENSIONS (MM) |
||
| Length | 3800 | |
| Width | 1500 | |
| Height | 1845 | |
| Wheelbase | 2100 | |
| Track Front | 1300 | |
| Track Rear | 1320 | |
| Cargo box dimensions | 2140 x 1430 x 300 | |
| Min turning circle dia | 8.6m | |
|
FUEL TANK |
||
| Capacity | 30 L | |
|
PERFORMANCE |
||
| Max Speed | 70 km/h | |
| Max Gradability | 22% | |
| Grade Restartability | 21% | |
|
WEIGHTS |
||
| GVW (Kg) | 1550 kg | |
| Kerb Weight | 840 kg | |
| Seating capacity | Driver + 1 | |
TATA ACE HT Mini Truck Key Features
- 4 stroke, indirect injection diesel engine
- TATA 275 IDI Diesel BS-III and BS IV model
- 702cc engine displacement
- 16 hp @ 3200 rpm power output
- 3.8mkg @2000rpm torque
- Single Plate Dry Friction Diaphragm clutch
- 60 kmph top attainable speed
- 22% Gradeability & 21% Grade Restartability
- 2100mm wheelbase & 30 liters fuel tank
- Dual Circuit Hydraulically Activated brakes
- Rigid Axle with Parabolic Leaf Spring suspension
- Front disc and rear drum brakes
- Mechanical, Variable Ratio (20.5 to 24.5) steering

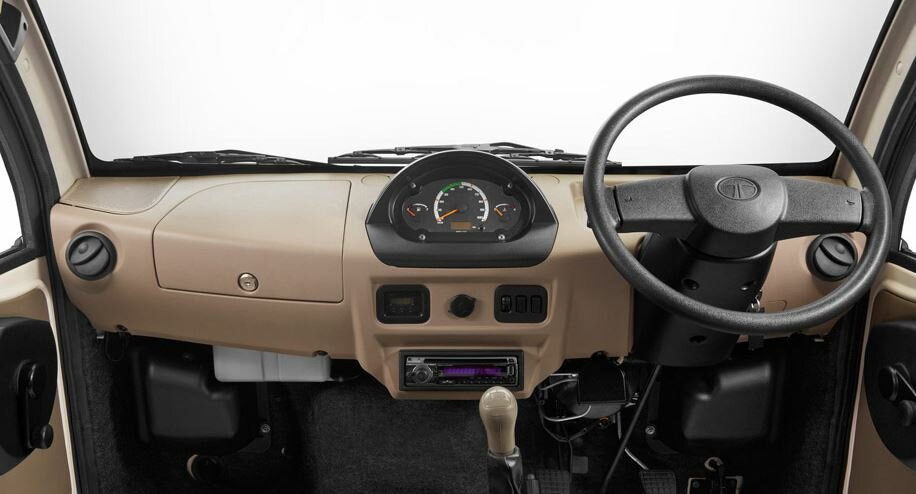

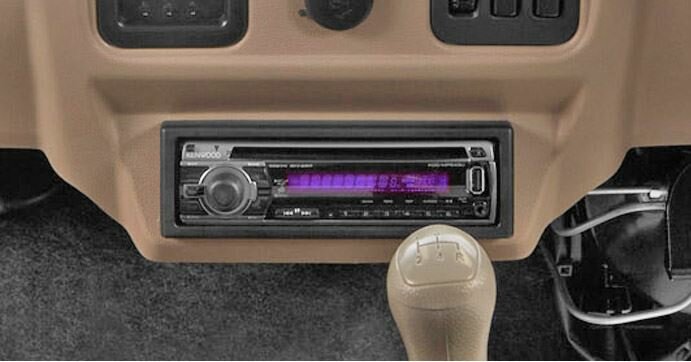

- Special features such as Sleek design wide-angle ORVM, Excellent headlamp, Ergonomic steering wheel, Music system provision, Bottle holder, Mobile charger, and High-class dashboard.
- Seating capacity: Driver + 1
- A warranty of 36,000 km or 12 months
Final Words
That’s all about the TATA ACE DICOR NA Mini Truck, I hope you like it, but if you have any questions about this article, then please comment below in the comment box, I will solve your problem solved as soon as you like it so please share with your friends and on social media, Thanks for visiting our site and stay tuned with me for more stuff like. keep Smiling, Take care of your family.
Visit our Website at Commercialvehicleinfo.com for additional Details.
Tata Ace HT FAQ
The on-road price of Tata Ace HT Plus varies depending on the state and city. Price begins from approximately Rs 6.35 lakh and goes up to approximately 7.19 lakh.
TATA ACE HT is a variant of the TATA ACE mini truck, which is a popular commercial vehicle known for its compact size and versatility.
Yes, TATA ACE HT is designed to maneuver through narrow city streets and congested areas, making it well-suited for urban transportation needs.
TATA ACE HT is primarily designed for goods transportation. However, depending on the configuration, it may offer seating options for limited passenger transport as well.
The specific license requirements may vary depending on local regulations. In many cases, a standard commercial driver’s license (CDL) is sufficient to operate TATA ACE HT.
Yes, TATA ACE HT can often be customized with additional features and modifications to meet specific business requirements, such as adding a cargo body or refrigeration unit.
TATA ACE HT typically includes safety features such as seatbelts, sturdy build quality, and ergonomic design to enhance driver safety.
The warranty coverage for TATA ACE HT may vary. For comprehensive warranty information, It is advisable to contact either the manufacturer or an authorized dealer directly.
Yes, many financial institutions offer financing options for purchasing TATA ACE HT, including loans and installment plans. Contact your local TATA Motors dealer or financial institution for details.
Yes, TATA Motors has an extensive network of authorized service centers and dealerships, ensuring the availability of genuine spare parts for TATA ACE HT.
TATA Motors provides a recommended maintenance schedule for TATA ACE HT, including regular servicing, oil changes, and inspections. Adhering to the maintenance schedule helps ensure optimal performance and longevity.
While TATA ACE HT is primarily designed for short to medium-distance transportation, it can be used for long-distance journeys depending on the specific requirements and road conditions.
TATA ACE HT can typically be purchased from authorized TATA Motors dealerships. Contact your local dealer or visit the TATA Motors website for more information on purchasing options.
